Corporate spaces demand impressive visual experiences. LED video wall installation has become the gold standard for creating stunning displays in lobbies, reception areas, and conference rooms. These massive, high-resolution screens transform ordinary spaces into memorable brand experiences.
However, LED video wall installation involves complex decisions about technology, sizing, costs, and logistics. Making the wrong choices leads to disappointing results and wasted investment. The right approach creates impactful displays that serve your business for years.
This comprehensive buyer’s guide walks you through every aspect of LED video wall installation. You’ll learn about pixel pitch options, sizing calculations, installation requirements, and budget planning. Whether you’re upgrading a corporate lobby or outfitting a boardroom, this guide provides the knowledge you need for successful LED video wall installation.
Understanding LED Video Wall Technology
LED video walls differ fundamentally from traditional displays. Instead of a single large screen, they consist of modular panels that connect together seamlessly. This modular approach enables virtually unlimited sizes and custom configurations.
How LED Video Walls Work:
Each panel contains thousands of tiny LED lights. These lights combine to create the full image you see. Red, green, and blue LEDs work together to produce millions of colors.
The panels mount together on specialized frames or directly to walls. Precision alignment creates the appearance of one continuous display. Modern LED video wall installation eliminates visible seams between panels.
Key Advantages:
- Unlimited size flexibility
- Superior brightness compared to projectors
- Excellent color accuracy and contrast
- Long lifespan (typically 100,000+ hours)
- Ambient light performance
- Modular serviceability
- Custom aspect ratios and shapes
Common Applications:
Corporate Lobbies:
- Brand messaging and company values
- Visitor welcome displays
- Real-time stock tickers or data
- Employee recognition programs
- Event announcements
Conference Rooms:
- Presentation displays
- Video conferencing backgrounds
- Data visualization for executives
- Collaborative whiteboarding
- Multi-source content sharing
Professional LED wall installation ensures these applications work flawlessly in your specific environment.

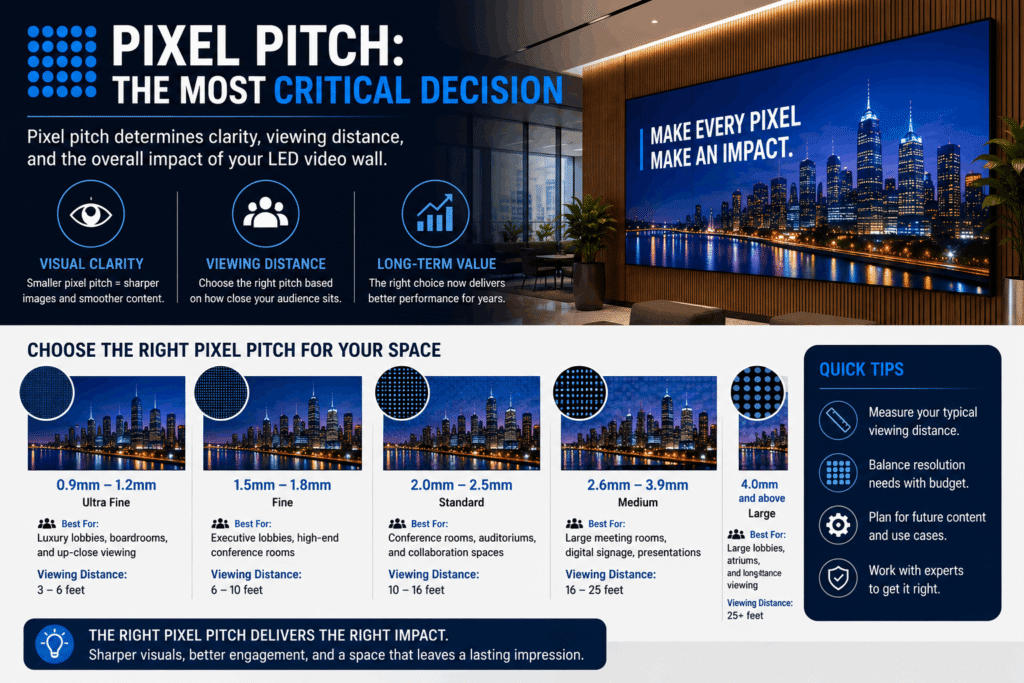

Pixel Pitch: The Most Critical Decision
Pixel pitch determines image quality and viewing distance for your LED video wall installation. Understanding this specification prevents costly mistakes.
What Is Pixel Pitch?
Pixel pitch measures the distance between LED clusters (pixels) in millimeters. Smaller numbers mean pixels are closer together, creating higher resolution and sharper images.
Common pixel pitch options:
- 0.9mm: Ultra-high definition
- 1.2mm: Premium quality
- 1.5mm: High quality
- 1.8mm: Standard quality
- 2.5mm: Budget-friendly
- 3mm+: Large venue displays
Calculating Optimal Viewing Distance:
A simple formula helps determine appropriate pixel pitch:
Minimum viewing distance (feet) = Pixel pitch (mm) x 10
Examples:
- 1.2mm pixel pitch: 12 feet minimum distance
- 1.8mm pixel pitch: 18 feet minimum distance
- 2.5mm pixel pitch: 25 feet minimum distance
Choosing the Right Pitch:
Corporate Lobby (1.5mm – 2.0mm): Visitors typically stand 10-20 feet away. Medium pixel pitch provides excellent image quality at reasonable cost.
Executive Conference Room (0.9mm – 1.5mm): Viewers sit 8-15 feet from the display. Fine pixel pitch ensures crisp text and detailed presentations.
Large Meeting Space (1.8mm – 2.5mm): Greater viewing distances allow larger pixel pitch. This reduces costs without sacrificing perceived quality.
Reception Area (1.5mm – 2.0mm): Mixed viewing distances require balanced approach. Medium-fine pitch works for both close and distant viewing.
Selecting proper pixel pitch during LED video wall installation planning ensures optimal visual experience at appropriate budget levels.
Sizing Your LED Video Wall
Determining the right size involves multiple considerations beyond simply “as big as possible.” Strategic sizing balances impact, budget, and spatial constraints.
Standard Sizes and Configurations:
LED panels typically measure 500mm x 500mm (19.7″ x 19.7″). Walls are built in multiples of these modules.
Popular Configurations:
Small Conference Room (6′ x 3′):
- Approximately 12 panels (4 wide x 3 high)
- Good for 8-12 person meetings
- Cost: $25,000-$45,000
Medium Lobby Display (10′ x 6′):
- Approximately 48 panels (8 wide x 6 high)
- Strong visual impact
- Cost: $75,000-$140,000
Large Boardroom (15′ x 8′):
- Approximately 96 panels (12 wide x 8 high)
- Executive-level presentation
- Cost: $150,000-$280,000
Ultra-Wide Conference (20′ x 6′):
- Approximately 96 panels (20 wide x 4 high)
- Panoramic collaboration display
- Cost: $160,000-$300,000
Calculating Appropriate Size:
Room Dimensions: Measure available wall space carefully. Account for:
- Existing architecture and features
- Electrical panel locations
- HVAC vents and returns
- Door and window clearances
- Structural support requirements
Viewing Distance: Wall size should match typical viewing distance. Too small appears underwhelming. Too large overwhelms the space.
Content Requirements: Consider what you’ll display. Detailed data visualization needs more screen real estate than simple messaging.
Budget Constraints: Larger installations cost significantly more. Balance desired impact with realistic budget.
Professional space planning during LED video wall installation ensures optimal sizing for your specific environment.
Installation Location Considerations
Where you install your LED video wall dramatically affects both installation complexity and ongoing performance.
Corporate Lobby Installation:
Advantages:
- High visibility for brand impact
- Impressive first impression for visitors
- Flexible content programming
- Supports company culture initiatives
Challenges:
- Ambient lighting from windows
- Varying viewing distances
- Potential vandalism or damage
- Public visibility requires professional content
Installation Requirements:
- Structural wall reinforcement
- Dedicated electrical circuits
- Network connectivity for content management
- Professional cable concealment
- Security considerations
Conference Room Installation:
Advantages:
- Controlled lighting environment
- Predictable viewing distances
- Integration with presentation systems
- Enhanced collaboration capabilities
Challenges:
- Limited wall space with other equipment
- Integration with existing AV systems
- Furniture placement considerations
- Acoustic treatment needs
Installation Requirements:
- Coordination with commercial AV systems
- Proper cable management
- Control system integration
- Comfortable viewing angles
- Adequate cooling and ventilation
Reception Area Installation:
Advantages:
- Constant visibility and engagement
- Supports wayfinding and information
- Flexible messaging capabilities
- Professional atmosphere creation
Challenges:
- Space constraints in smaller areas
- Multiple viewing angles
- Background noise considerations
- Content management workflow
Each location requires specialized LED video wall installation approaches to maximize effectiveness and reliability.
Structural and Mounting Requirements
LED video walls are heavy. Proper structural support is absolutely critical for safety and long-term reliability.
Weight Calculations:
Typical LED panels weigh 15-25 pounds each. A medium-sized installation might include:
- 48 panels x 20 lbs = 960 lbs
- Mounting frame: 150 lbs
- Cabling and accessories: 50 lbs
- Total: 1,160 lbs
Standard drywall cannot support this weight. Professional LED video wall installation requires proper structural mounting.
Mounting Options:
Direct Wall Mount:
- Requires substantial wall reinforcement
- Steel framework anchored to studs
- Often requires opening walls
- Most permanent and stable option
Free-Standing Frame:
- Independent steel structure
- No wall penetration required
- Relocatable if needed
- Requires floor space and stability
Ceiling Suspension:
- Hangs from ceiling structure
- Good for lobbies and atriums
- Requires significant ceiling support
- Professional engineering assessment needed
Recessed Installation:
- Flush-mounted into wall cavity
- Cleanest aesthetic appearance
- Complex construction requirements
- Best planned during building renovation
Structural Engineering:
Large LED video wall installation often requires:
- Professional structural assessment
- Engineer-stamped mounting plans
- Building permit approval
- Inspection and certification
Never skip structural planning. Failed installations cause property damage, injury liability, and expensive repairs.
Electrical and Network Infrastructure
LED video walls demand robust electrical and network infrastructure. Planning these requirements prevents installation delays and performance problems.
Electrical Requirements:
Power Consumption:
LED video walls consume significant electricity:
- Small wall (6′ x 3′): 1,500-2,500 watts
- Medium wall (10′ x 6′): 4,000-7,000 watts
- Large wall (15′ x 8′): 8,000-12,000 watts
Circuit Requirements:
- Dedicated 20-amp circuits (minimum)
- Multiple circuits for larger installations
- Surge protection essential
- UPS backup for critical applications
Power Distribution: Professional LED video wall installation includes:
- Load calculations and circuit design
- Conduit runs to wall location
- Appropriate breaker sizing
- Grounding and bonding compliance
Work with qualified commercial electrical services to ensure safe, code-compliant electrical infrastructure.
Network Connectivity:
Modern LED walls require network connections for:
- Content management and scheduling
- Remote monitoring and control
- Software updates and maintenance
- Integration with other systems
Network Requirements:
- Dedicated Gigabit Ethernet connection
- VLAN segmentation recommended
- Static IP addressing
- Firewall configuration for remote access
Bandwidth Considerations:
- 4K content streaming: 25-50 Mbps
- Remote management: 5-10 Mbps
- Software updates: Varies
- Total recommended: 100 Mbps dedicated
Reliable structured network cabling ensures your LED video wall installation performs consistently.
Content Management and Control Systems
Hardware is only half the equation. Effective content management makes or breaks your LED video wall installation.
Content Management Platforms:
Cloud-Based Systems:
- Access from anywhere
- Automatic updates
- Scalable across multiple displays
- Subscription pricing
- Examples: Appspace, ScreenCloud, Scala
On-Premise Systems:
- Local control and security
- One-time licensing
- Requires server infrastructure
- IT department management
- Examples: BrightSign, NoviSign
Basic Capabilities:
All content management systems should provide:
- Scheduling and automation
- Multi-zone content layouts
- Remote monitoring and alerts
- User access controls
- Template libraries
- Media asset management
Integration Options:
Connect your LED video wall installation to:
- Corporate calendars (Outlook, Google)
- Data sources (CRM, analytics platforms)
- Social media feeds
- Weather and news services
- Emergency alert systems
- Building management systems
Content Creation Considerations:
Plan for ongoing content development:
- In-house design resources
- Agency partnerships
- Stock content libraries
- Employee-generated content
- Automated data visualization
Quality content maximizes your LED video wall installation investment. Beautiful hardware displaying poor content disappoints viewers.
Installation Process and Timeline
Understanding the LED video wall installation process helps you plan appropriately and set realistic expectations.
Typical Project Timeline:
Planning Phase (2-4 weeks):
- Site assessment and measurements
- Technology selection
- Structural engineering
- Network planning
- Permitting applications
- Budget finalization
Preparation Phase (2-3 weeks):
- Equipment ordering (long lead items)
- Electrical infrastructure upgrades
- Network cable installation
- Structural reinforcement
- Wall surface preparation
Installation Phase (1-2 weeks):
- Mounting frame installation
- Panel delivery and staging
- Panel mounting and alignment
- Power and data connections
- Control system integration
- Initial testing
Commissioning Phase (1 week):
- Pixel calibration and color matching
- Content management setup
- User training
- Documentation delivery
- Final inspection and approval
Total Timeline: 6-10 weeks from planning to completion
Rush projects are possible but reduce quality and increase costs. Proper LED video wall installation requires adequate time.
Installation Day Logistics:
Successful installation requires:
- Building access coordination
- Elevator reservations for large equipment
- Parking for installation vehicles
- Clear work area
- Temporary power if needed
- IT staff availability for network configuration
Plan for some disruption to normal business operations during LED video wall installation. Weekend or after-hours work minimizes impact but increases labor costs.
Budget Planning and Total Cost of Ownership
LED video wall installation represents significant investment. Complete budget understanding prevents surprises.
Hardware Costs:
LED Panels (per square foot):
- 0.9mm pixel pitch: $250-$400
- 1.2mm pixel pitch: $180-$300
- 1.5mm pixel pitch: $140-$220
- 1.8mm pixel pitch: $110-$180
- 2.5mm pixel pitch: $80-$140
Example Total Hardware Costs:
Small Conference (6′ x 3′ = 18 sq ft):
- Panels (1.5mm): $2,520-$3,960
- Mounting frame: $1,500-$2,500
- Controllers: $2,000-$3,500
- Hardware Total: $6,020-$9,960
Medium Lobby (10′ x 6′ = 60 sq ft):
- Panels (1.8mm): $6,600-$10,800
- Mounting system: $3,500-$5,500
- Controllers and processors: $4,500-$7,000
- Hardware Total: $14,600-$23,300
Large Boardroom (15′ x 8′ = 120 sq ft):
- Panels (1.2mm): $21,600-$36,000
- Mounting infrastructure: $6,000-$10,000
- Control systems: $8,000-$12,000
- Hardware Total: $35,600-$58,000
Installation and Infrastructure Costs:
- Professional installation labor: $5,000-$15,000
- Electrical infrastructure: $2,000-$8,000
- Network cabling: $1,500-$4,000
- Structural reinforcement: $3,000-$12,000
- Permits and engineering: $1,000-$5,000
Software and Content:
- Content management platform: $500-$3,000/year
- Initial content creation: $3,000-$15,000
- Ongoing content services: $500-$2,000/month
Maintenance and Support:
- Annual service contracts: 8-12% of hardware cost
- Spare panel inventory: $2,000-$8,000
- Power consumption: $50-$300/month
Total Investment Examples:
Complete Small Installation: $25,000-$50,000 Complete Medium Installation: $75,000-$150,000
Complete Large Installation: $150,000-$300,000+
These estimates include everything needed for functioning LED video wall installation. Budget accordingly to avoid scope creep.
Maintenance and Longevity
LED video walls require ongoing maintenance for optimal performance. Understanding these requirements protects your investment.
Routine Maintenance Tasks:
Monthly:
- Visual inspection for pixel failures
- Cleaning exterior surfaces
- Verify content playback
- Check environmental conditions
Quarterly:
- Deep cleaning of panels
- Calibration checks
- Software updates
- Connection inspection
Annually:
- Professional calibration service
- Comprehensive system testing
- Cooling system inspection
- Documentation updates
Common Issues and Solutions:
Dead Pixels: Individual LEDs eventually fail. Quality panels include spare LEDs for serviceability. Replace failed modules promptly.
Color Drift: Over time, LED color output shifts. Annual calibration maintains consistent appearance across the entire wall.
Control System Failures: Backup controllers prevent complete outages. Regular updates improve reliability.
Environmental Damage: Dust, moisture, and temperature extremes affect performance. Proper environmental controls extend lifespan.
Expected Lifespan:
Quality LED video wall installation delivers:
- 100,000+ hour LED lifespan (10+ years at 24/7 operation)
- 5-7 years before noticeable brightness reduction
- 3-5 years for control system components
- Indefinite lifespan with proper panel replacement
Warranty Considerations:
Standard warranties typically include:
- LED panels: 3-5 years parts and labor
- Electronics: 2-3 years
- Mounting hardware: 1-2 years
- Installation workmanship: 1 year
Extended warranties cost 15-25% of hardware price but provide valuable protection for large LED video wall installation projects.
Working with Professional Installers
LED video wall installation requires specialized expertise. Selecting the right installation partner determines project success.
Qualifications to Verify:
Technical Certifications:
- Manufacturer-certified installers
- AVIXA (Audiovisual and Integrated Experience Association) credentials
- Electrical licensing for power work
- Network cabling certifications
Experience Factors:
- Portfolio of completed installations
- References from similar projects
- Years in LED video wall installation
- Manufacturer relationships
Project Approach:
Quality installers provide:
- Detailed site assessment before quoting
- Comprehensive project proposals
- Clear timeline and milestone planning
- Dedicated project management
- Thorough testing and documentation
Red Flags:
Avoid installers who:
- Quote without site visit
- Promise unrealistic timelines
- Lack manufacturer certification
- Cannot provide references
- Offer suspiciously low pricing
Professional digital signage specialists ensure your LED video wall installation meets quality standards and performance expectations.
Return on Investment Considerations
LED video wall installation represents substantial investment. Measuring value helps justify expenditure and guide decisions.
Quantifiable Benefits:
Corporate Lobbies:
- Enhanced brand perception (difficult to quantify but real)
- Visitor engagement metrics
- Employee morale improvements
- Reduced print signage costs
- Flexible messaging without reprinting
Conference Rooms:
- Improved meeting productivity
- Better collaboration outcomes
- Enhanced presentation impact
- Reduced travel through better video conferencing
- Competitive advantage in client presentations
Reception Areas:
- Wayfinding efficiency
- Reduced staff interruptions for directions
- Emergency communication capability
- Professional atmosphere enhancement
Calculating Payback:
Compare LED video wall installation costs against:
- Previous signage and display expenses
- Projected energy savings vs. projectors
- Maintenance cost reductions
- Productivity improvements
- Marketing and communication value
Typical payback periods range from 3-7 years for corporate installations. However, intangible benefits like brand enhancement and employee engagement often justify investment beyond pure financial metrics.
Making Your Final Decision
Successful LED video wall installation requires careful evaluation of all factors discussed in this guide.
Decision Checklist:
- Determined appropriate pixel pitch for viewing distance
- Calculated optimal wall size for space
- Verified structural support requirements
- Planned electrical and network infrastructure
- Selected content management platform
- Developed realistic budget including all costs
- Identified qualified installation partner
- Created project timeline with stakeholders
- Planned ongoing maintenance approach
- Defined success metrics and ROI expectations
Next Steps:
- Conduct Site Assessment: Bring qualified installers to evaluate your space
- Develop Requirements: Document specific needs and preferences
- Request Detailed Proposals: Get comprehensive quotes from multiple vendors
- Review References: Visit completed installations similar to yours
- Finalize Planning: Lock down timeline, budget, and specifications
- Execute Installation: Work closely with your chosen partner
- Launch and Optimize: Begin with quality content and gather feedback
LED video wall installation transforms corporate spaces into dynamic communication environments. The technology has matured significantly, offering reliability and performance that justify investment.
Success comes from thorough planning, realistic budgeting, and partnership with experienced professionals who understand both the technology and your business objectives.
Your LED video wall installation should serve your organization for a decade or more. The upfront investment in proper planning and quality execution pays dividends through years of reliable, impactful performance.
Contact Integrated Technology Solutions to discuss your LED video wall installation project. Our experienced team specializes in corporate lobby and conference room installations throughout Houston and nationwide. We’ll assess your space, recommend optimal solutions, and deliver professional installation that creates the impressive visual experience your organization deserves. Let us help you transform your corporate environment with cutting-edge LED video wall technology.
